How to program with OUCC's Blockly Image Task tool

flower banner

Taking things further:

In PNG images there is also a fourth byte that stores a transparency value where 0 is completely transparent and 255 is not at all transparent.

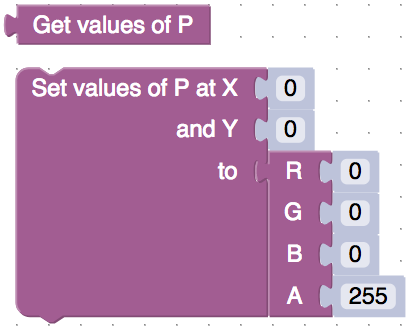

The data for each pixel in a PNG can be accessed as a small tuple (array): (R,G,B,A). These are the blocks that get and set these complete pixel data values:
P value blocks

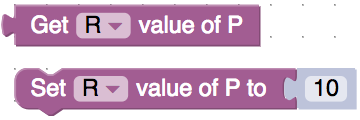

Alternatively there are blocks for getting and setting just the R,G,B or A pixel values individually:
R value blocks
